dexCap
Core Features & Advantages
核心功能与优势

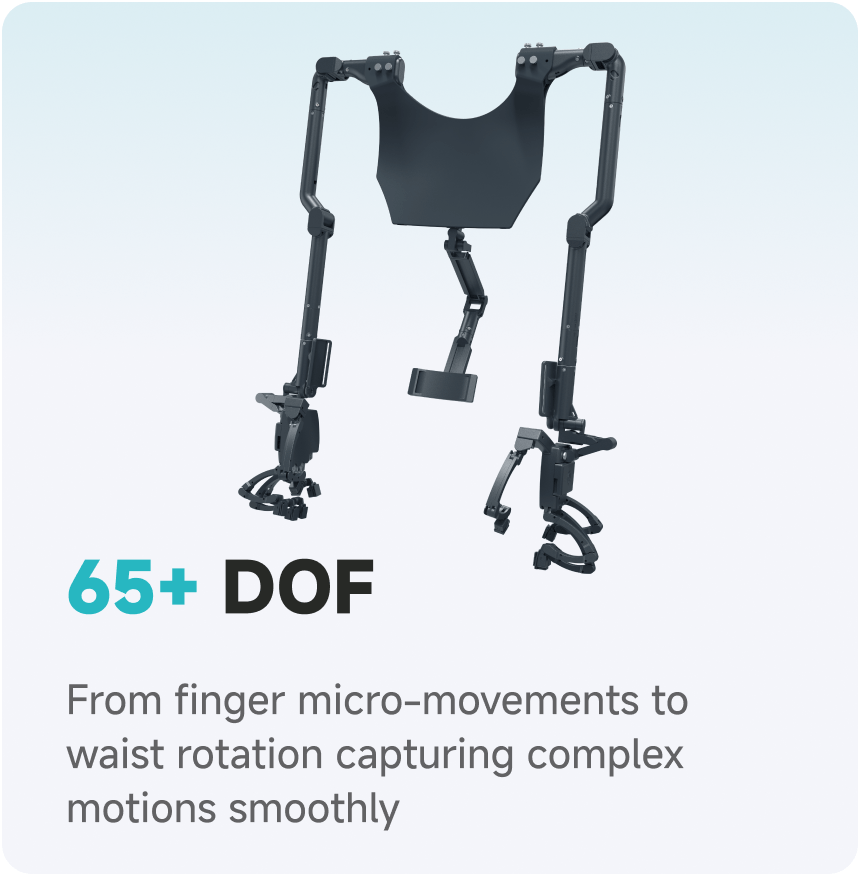

High DOF
Provides rich and precise data acquisition, surpassing the limitations of low-DOF devices.

[1]

9 DoF per arm

[2]

21 DoF per hand

[3]

5 DoF for waist

核心功能与优势
Accurate Tracking & Faster Response
Provides high-bandwidth, low-noise data streams for robotic learning and teleoperation research, enhancing algorithm performance and generalization.

[1]

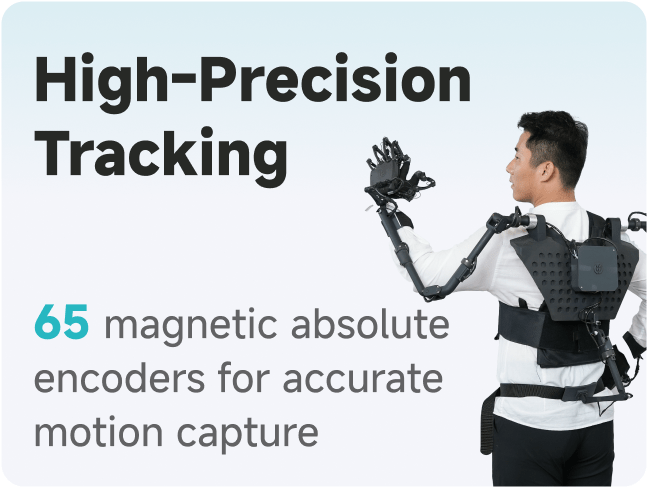

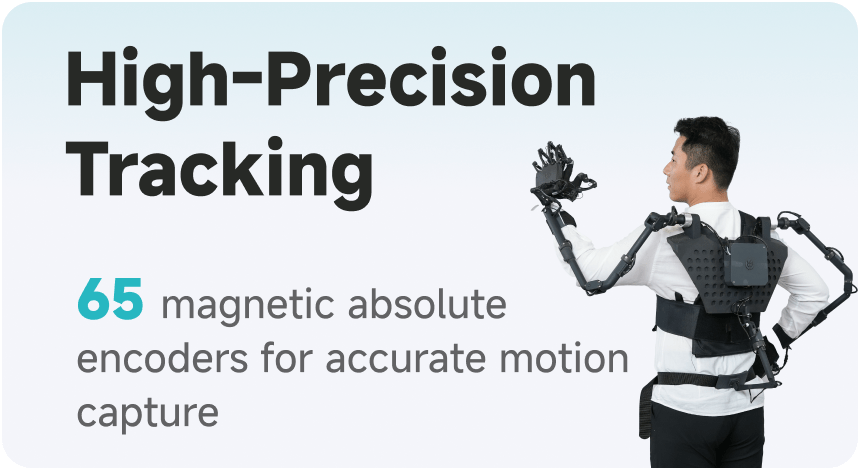

65 magnetic absolute encoders

[2]

Millimeter-level positioning accuracy

[3]

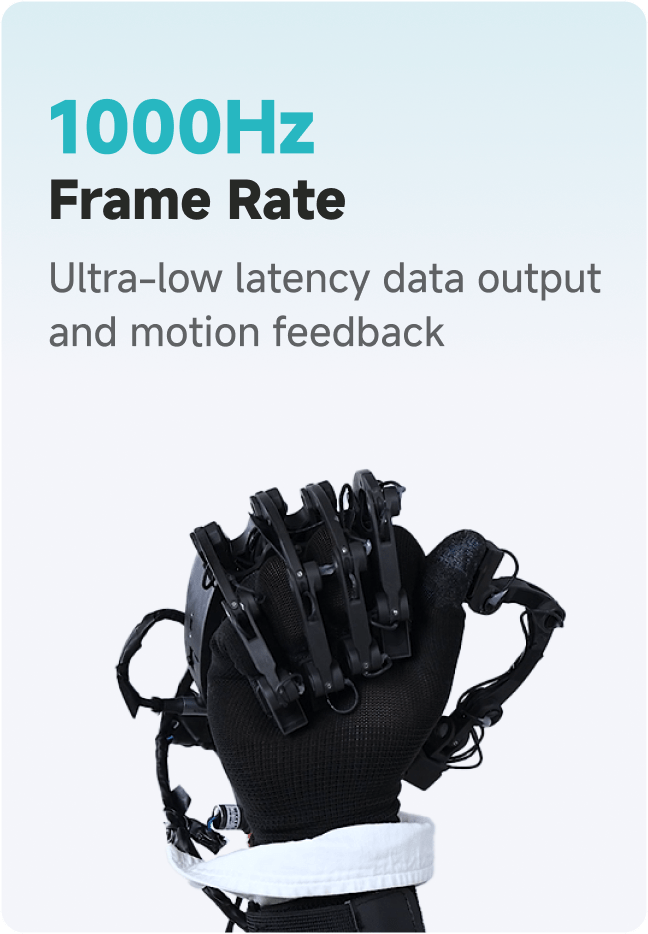

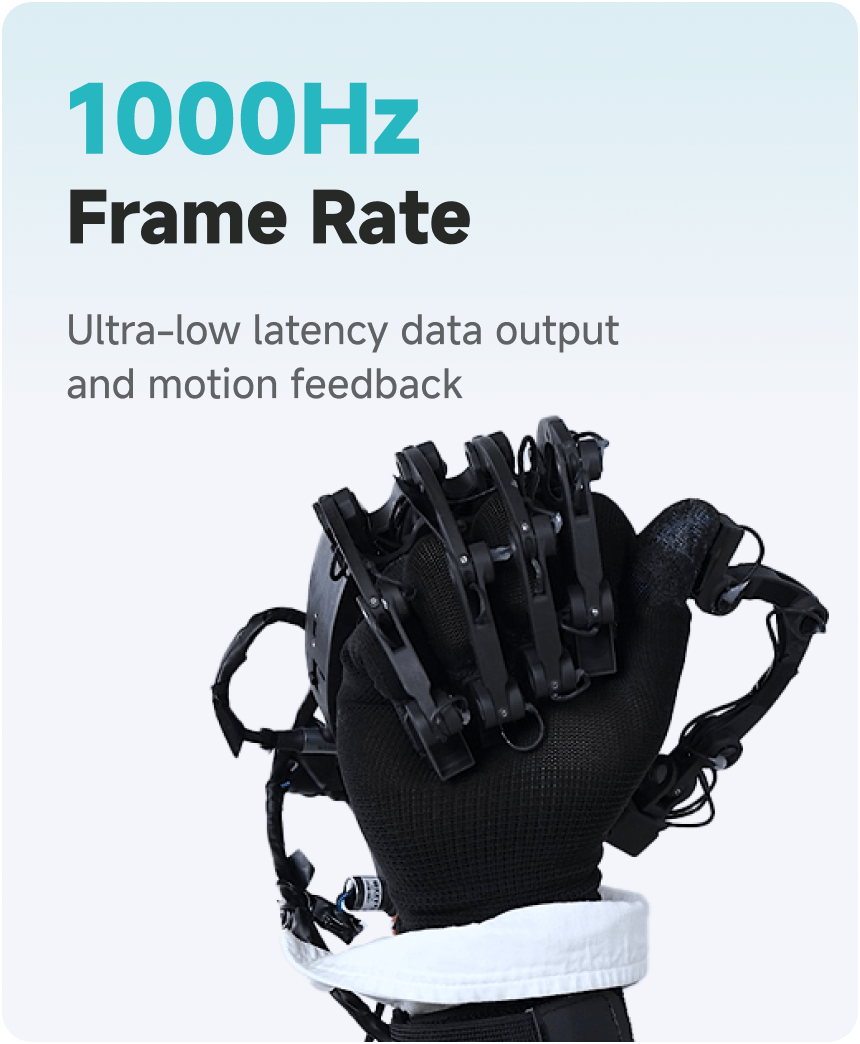

Communication frame rate up to 1000Hz

核心功能与优势
Ready to Use
Seamlessly integrates with mainstream development environments, supporting full-chain development from algorithms to hardware. Configurable as needed to reduce R&D barriers and costs.

[1]

Strong ecosystem compatibility (C++/Python/ROS SDK)

[2]

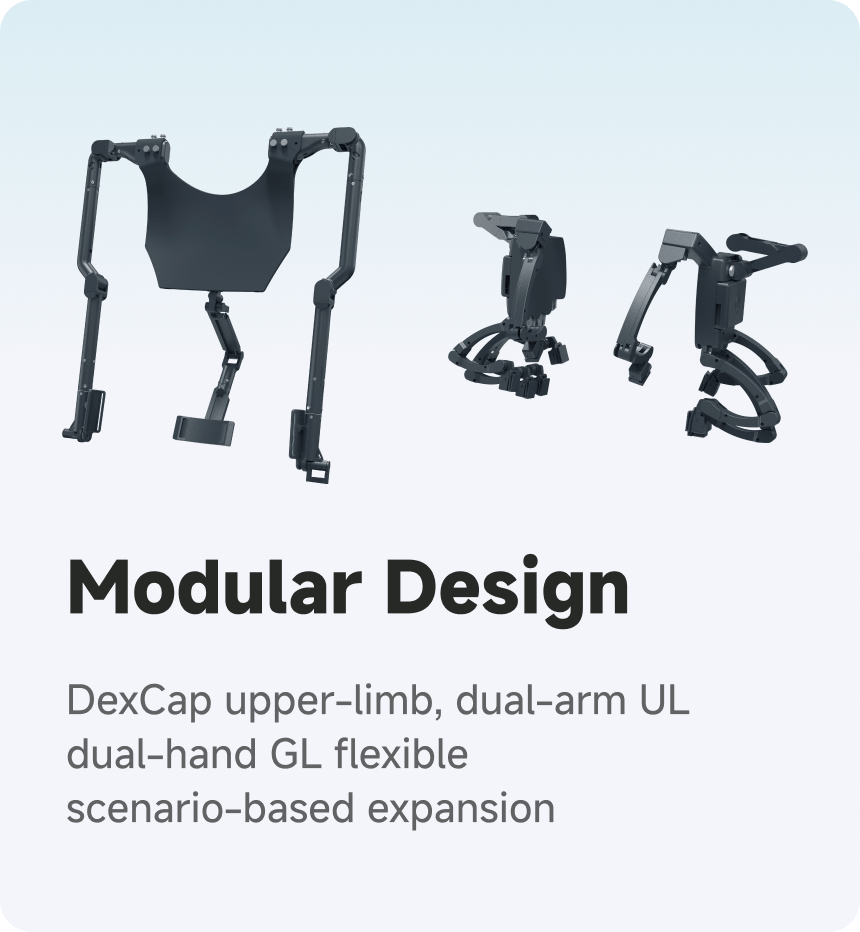

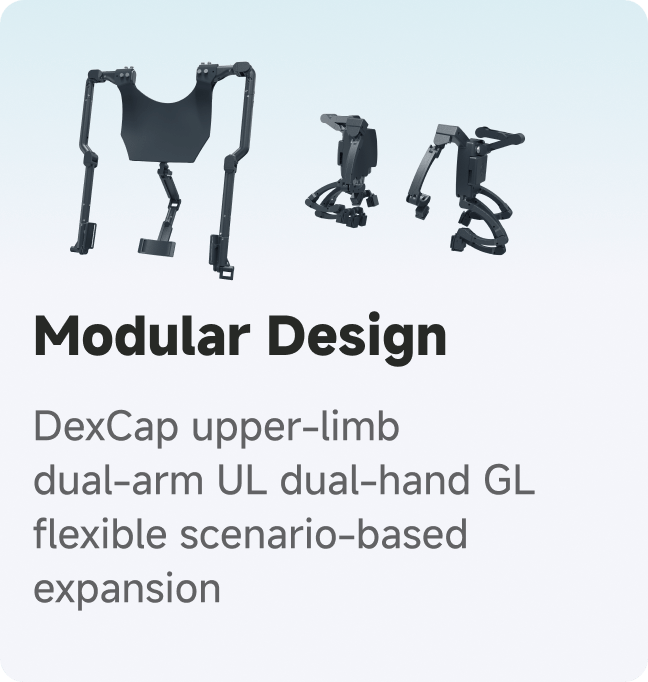

Modular product lines (DexCap/UL/GL)

[3]

Dual system support (Windows/Linux)

核心功能与优势
Lightweight, Enduring Research-Grade Experience
Ergonomic design and all-day endurance eliminate the physical load and power anxiety of traditional devices.

[1]

Portable wearable design

[2]

Battery life up to 8–12 hours

机械展示
dexCap高亮
Product Parameter
数据系统类型高亮
数据系统类型高亮
数据系统类型高亮
线条
Parameters
DOF
65DOF
Weight
4.2kg
Battery Life
~8 hours
Dimensions (mm)
890*561*210
Applicable Height
160cm-180cm
Accuracy
Millimeter level
Encoder Type
Absolute encoder
Communication Frame Rate
Wireless 200 Hz / Wired 1000 Hz
System Support
Windows、Linux
Communication Modes
2.4G wireless, USB wired data transmission
Protocol Support
Provides C++/Python/ROS SDK (compatible with mainstream robotic arms and dexterous hand simulation models)
End-Point Position Accuracy
X ≤ 0.5 mm, Y ≤ 0.5 mm, Z ≤ 0.1 mm
End-Point Attitude Error
Roll ≤ 0.1°, Pitch ≤ 0.1°, Yaw ≤ 0.1°
线条
Package
DexCap x 1
Hub × 1
Power Bank (10,000 mAh) × 2
Battery (3,000 mAh) × 4
Wireless Receiver × 3
5V Power Adapter × 2
Type-C Cable × 3
Gloves (S × 2, M × 2, L × 2)
Arm Straps (S × 2, L × 2)
Packing Box × 1
